MINIMAX S 52es
Autentification needed
Code :
MINIMAX S 52es
6886.00 EUR
About

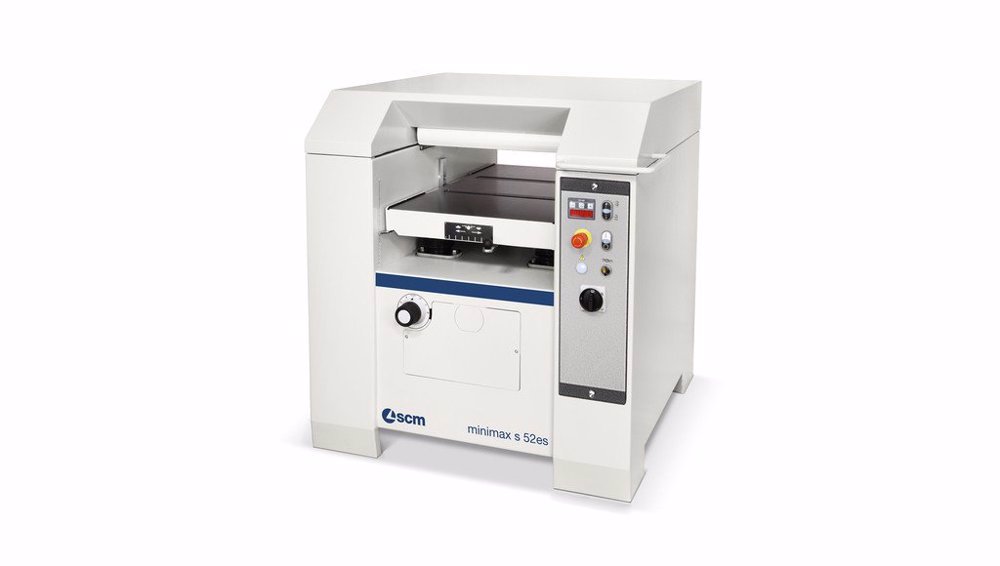

The new minimax s 52es thicknessing planer with 520 mm working width, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.
Discover the "Xylent" cutterhead, available for this machine.
Description
Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.

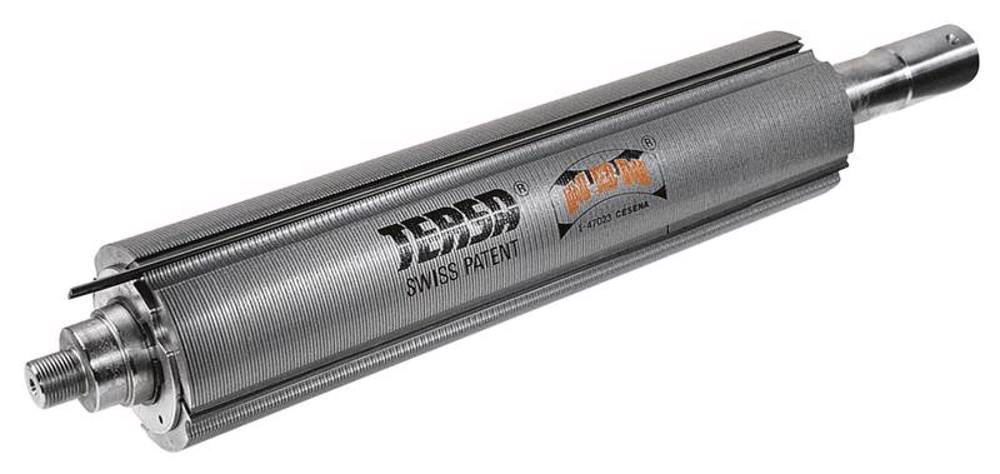

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data
Technical data
| s 52es | ||
| Working width | mm | 520 |
| Cutterblock diameter / no. of standard knives | mm/n. | 120 / 4 |
| Dimension of standard knives | mm | 520 x 30 x 3 |
| Max. stock removal | mm | 5 |
| Thicknessing table dimensions | mm | 520 x 775 |
| Feed speed on thicknesser | m/min | 5 / 8 / 12 / 18 |
| Min. ÷ max. working height on thicknesser | mm | 3 ÷ 240 |
| Three-phase motors starting from | kW/Hz | 7 (9) / 50 (60) |
