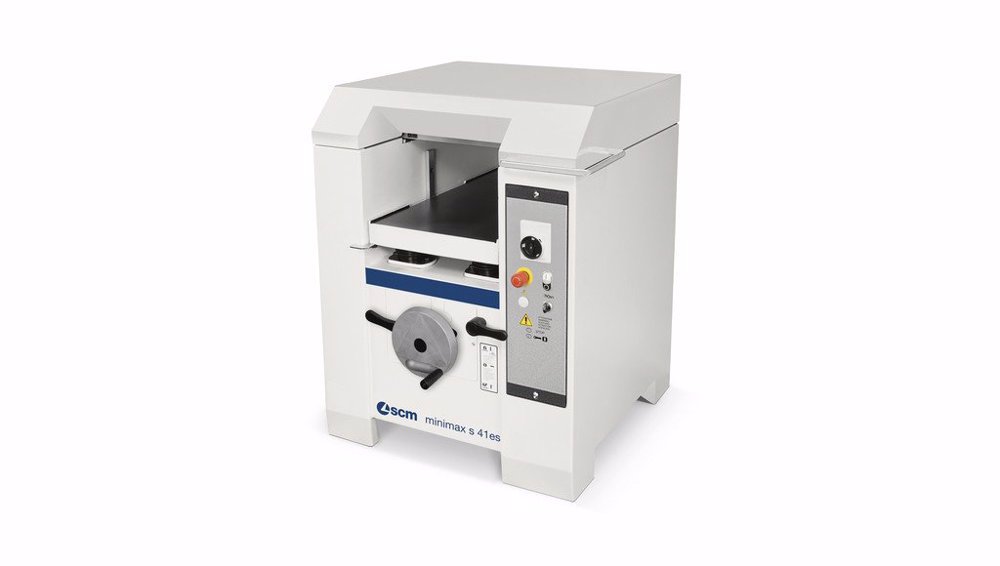

MINIMAX S 41es
4874.00 EUR
About
High technology at a competitive price in a thicknessing planer for demanding craftsmen and carpentries.
Description
Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data
Technical data
| s 41es | ||
| Working width | mm | 410 |
| Cutterblock diameter / no. of standard knives | mm/n. | 95 / 4 |
| Dimension of standard knives | mm | 410 x 30 x 3 |
| Max. stock removal | mm | 5 |
| Thicknessing table dimensions | mm | 410 x 775 |
| Feed speed on thicknesser | m/min | 6 / 12 |
| Min. ÷ max. working height on thicknesser | mm | 3 ÷ 240 |
| Three-phase motors starting from | kW/Hz | 5 (6) / 50 (60) |
