MINIMAX ME 25
12012.00 EUR


About

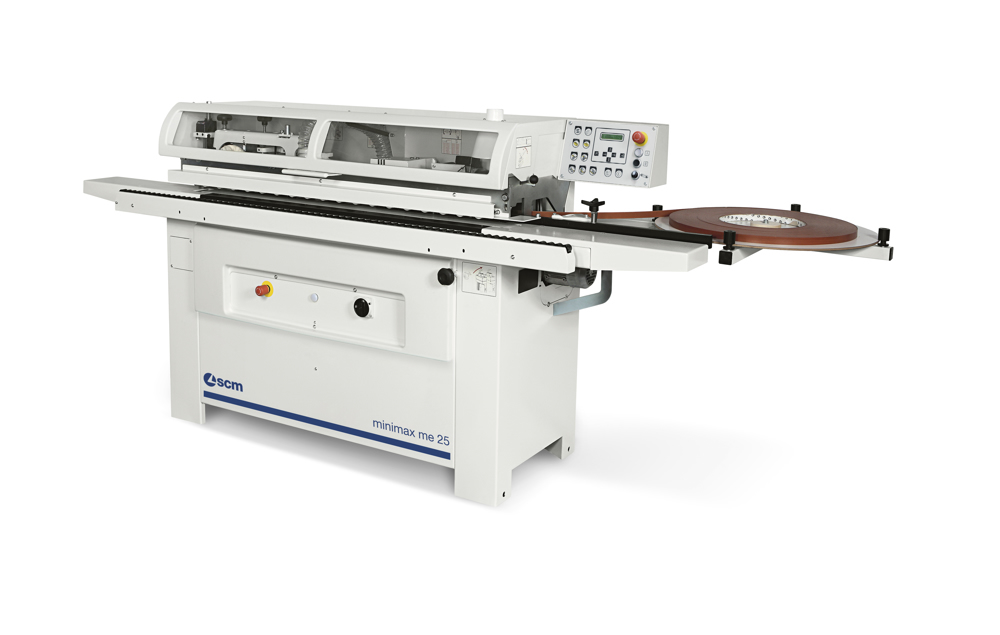

Automatic edge bander with glue pot to edge band, with great flexibility, with melaminic edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.
Description
Designed for a perfect finish
The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generatedby the pinion of a traditional feed track and ensures a smooth and linear panel movement.
Always precise when cutting
Absolute precision offered by the unit, with a cutter and an independent asynchronous.
Simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.

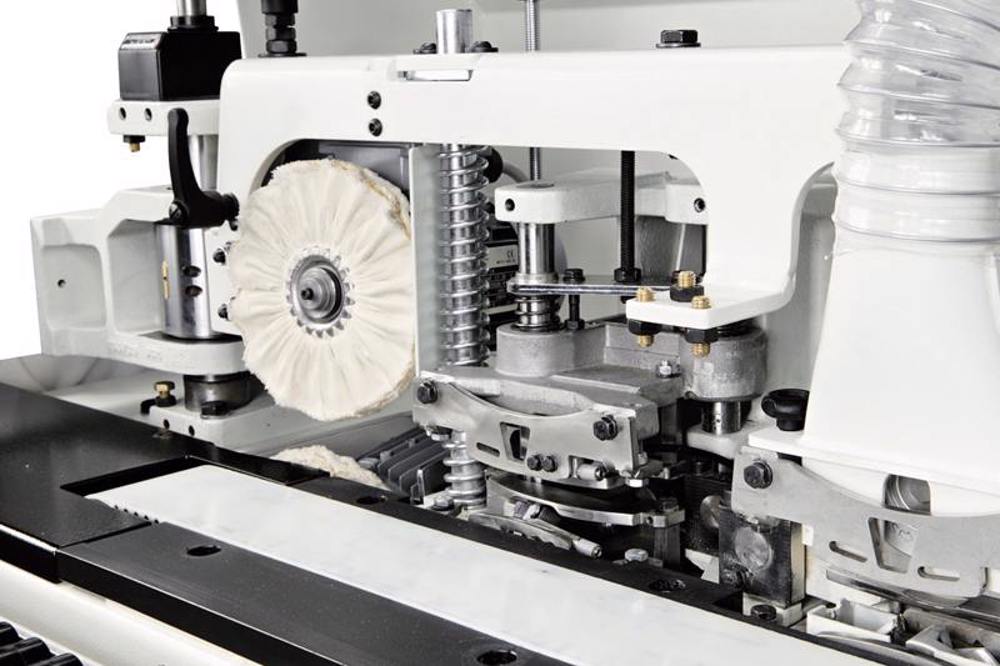

Perfect radius on pvc/abs edges
High finishing quality of plastic material edges thanks to the radius knives that ensure the complete elimination of any marks left from the rimming unit tools, all equipped with fronte and vertical copiers and a user-friendly device for exclusion of the unit when it is not in use.
Technical data

Technical data
me 25
Work table dimensions mm 2600 x 530
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3
Max. thickness of edges in strips mm 5
Min. ÷ max. panel height mm 12 ÷ 50
Min. panel length/width mm 190/65
Feed speed m/min 7
