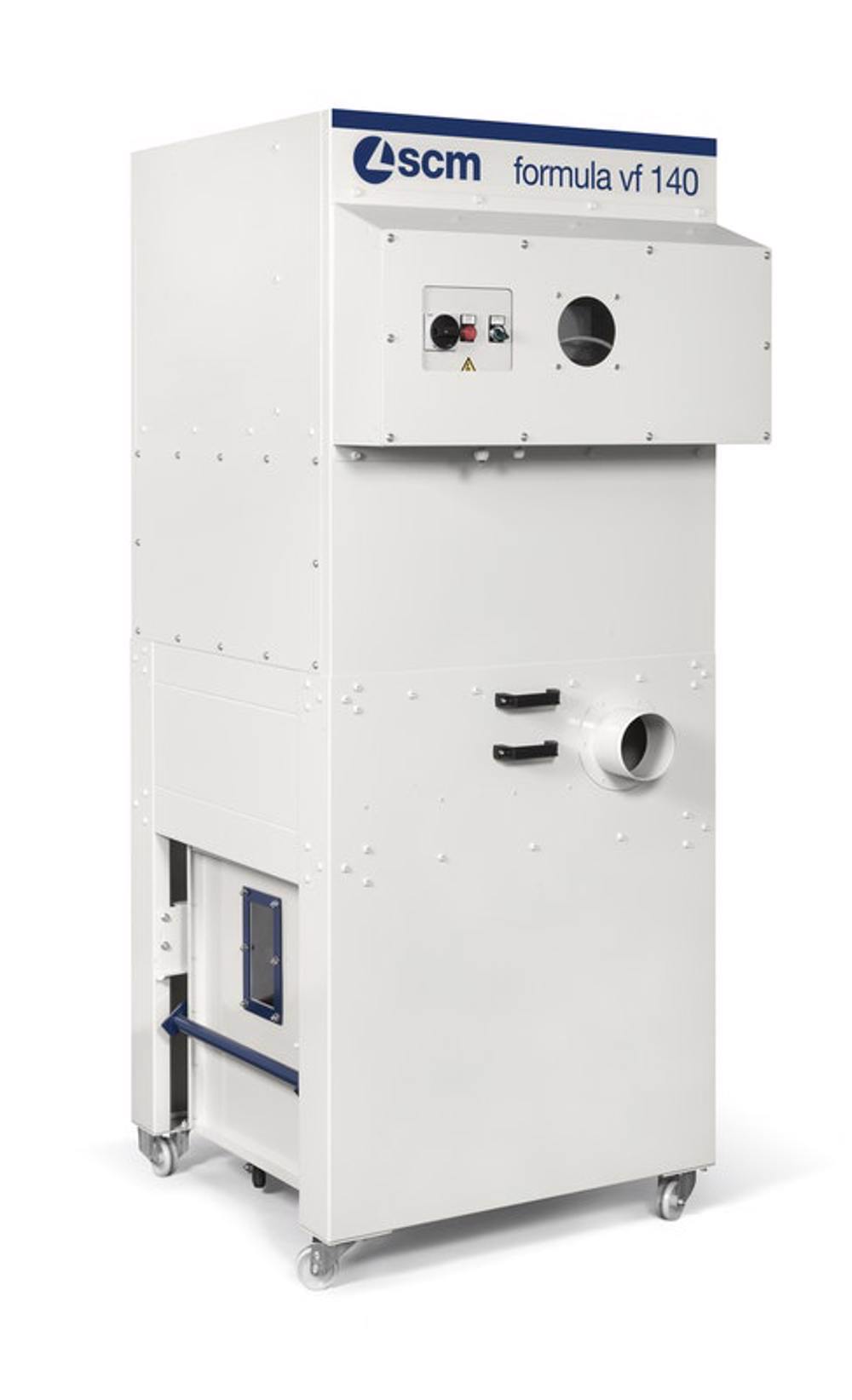

VF 140
Autentification needed
Code :
VF 140
3051.00 EUR
About
The vf clean air dust extractors are specially designed to work in the woodworking shops, guaranteeing a level of dust emissions lower than 0.1 mg / m3.
Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.
Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.
Description
Risks prevention
The fan is positioned at the end of the machine, in a specific protect area, far away from the high risk of explosion zone.
The fan is positioned at the end of the machine, in a specific protect area, far away from the high risk of explosion zone.
Absolute performance
The vf 125 and vf 140 dust extractors are equipped with a cartridge filter to reduce the overall dimenstions of the machine to a minimum, while starting from the vf 160 model scm uses sleeve filters for maximum filtering and clearing efficiency.
The vf 125 and vf 140 dust extractors are equipped with a cartridge filter to reduce the overall dimenstions of the machine to a minimum, while starting from the vf 160 model scm uses sleeve filters for maximum filtering and clearing efficiency.
Practicality first of all
Easy to move thanks to the wheels below and equipped with devices to prevent the suction of the nylon bag by the fan.
Easy to move thanks to the wheels below and equipped with devices to prevent the suction of the nylon bag by the fan.
Technical data
Technical data
| vf 125 | vf 140 | vf 160 | vf 200 | vf 250 | vf 300 | |
| Nominal Air Flow @ 20 m/sec. [m3/h*] | 850 | 1100 | 1450 | 2300 | 4000 | 6000 |
| Nominal Pressure [Pa] | 2350 | 2200 | 2350 | 2350 | 2800 | 3300 |
| Maximum Air flow @ 20 m/sec. [m3/h*] | 3500 | 4000 | 6000 | 6300 | 6600 | 8000 |
| Pressure @ Maximum air flow [Pa] | 800 | 900 | 600 | 800 | 1600 | 1800 |
| Dimensions [mm] (Length x Width x Height) | 886x840x2185 | 886x840x2185 | 2305x1070x2438 | 2305x1070x2438 | 2525x1150x2439 | 3435x1150x2439 |
| Filtering Surface [m2] (Antistatic) | 5 | 10 | 12 | 15 | 20 | 30 |
| Air Inlet diameter Ø [mm] | 125 | 140 | 160 | 200 | 250 | 300 |
| Residual dust level [mg/m3] | <0,1 | <0,1 | <0,1 | <0,1 | <0,1 | <0,1 |
| Storage Volume [l] | 185 | 185 | 2x185 | 2x185 | 2x270 | 3x270 |
| Fan Power [kW] | 2,2 kW 3F | 2,2 kW 3F | 3 kW 3F | 4 kW 3F | 5,5 kW 3F | 7,5 kW 3F |
| Atex | - | - | - | - | opz/opt/Opt | opz/opt/Opt |
