MINIMAX ME 40t
19481.00 EUR
About

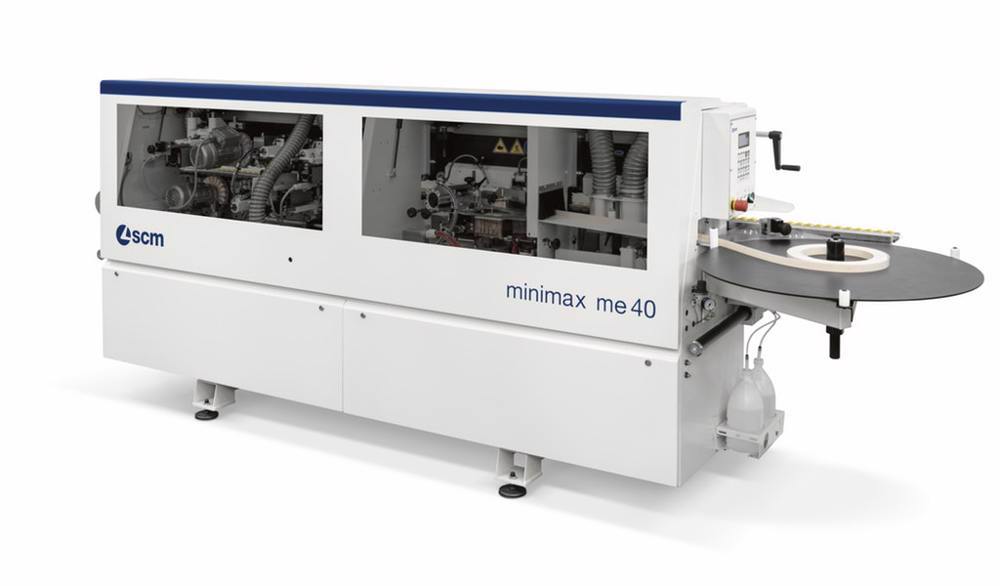

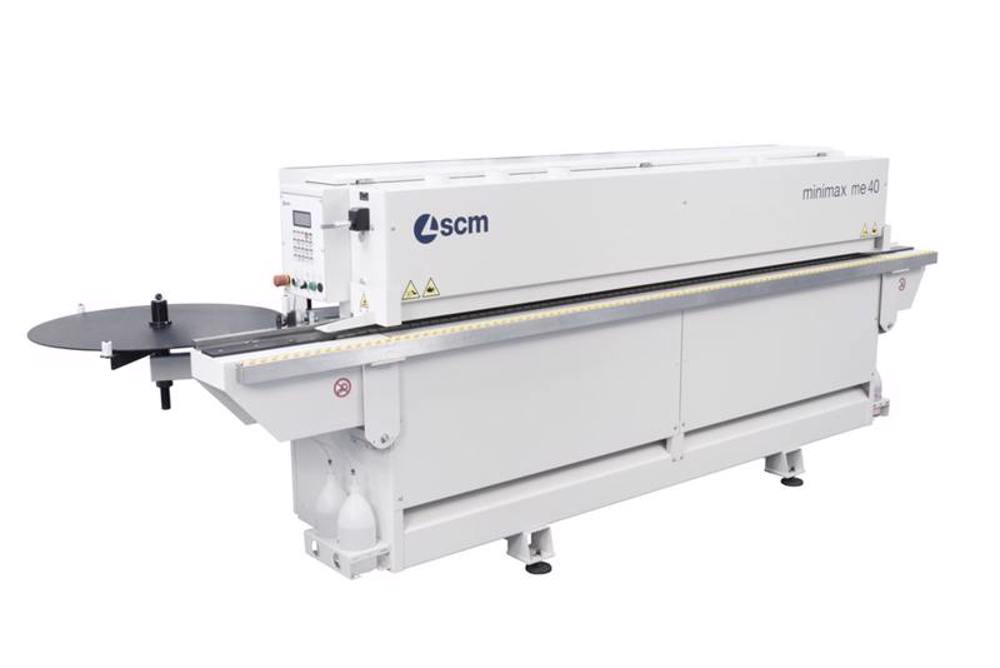

High productivity edge bander with high quality performance. me 40t, further enhanced compared to the previous version, with the new rounding unit that allows to obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing. It is confirmed as the most accessorizable machine in its technological range, with an excellent quality / price ratio. This edgebander increases productivity with the feed track of the panel brought to a speed of 9 m / min (the fastest in the minimax range) and guarantees high quality standards in processing thanks to the possibility of working with polyurethane glue, perform grooves, all being extremely easy to use.
Description
High productivity
9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.
9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.

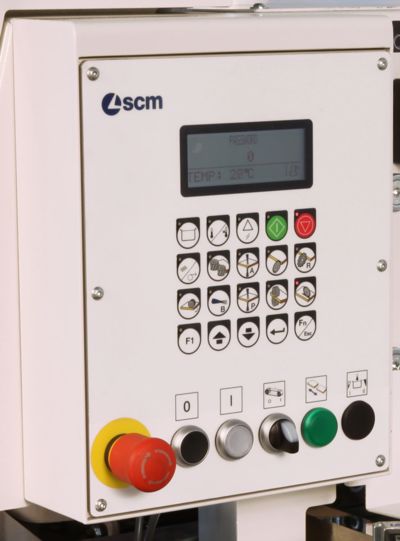

Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Impeccable finish

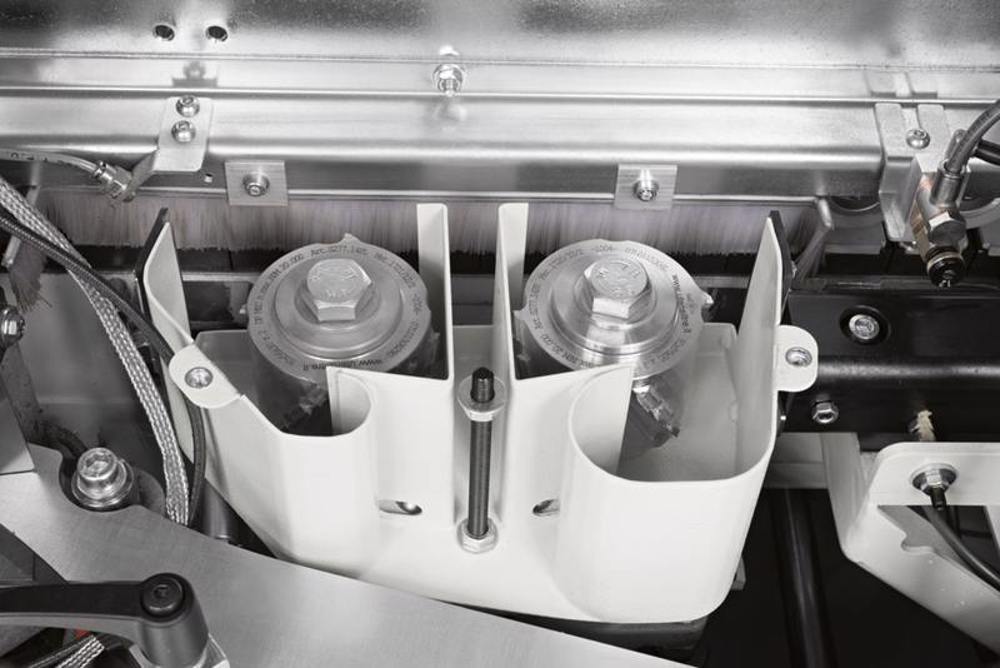

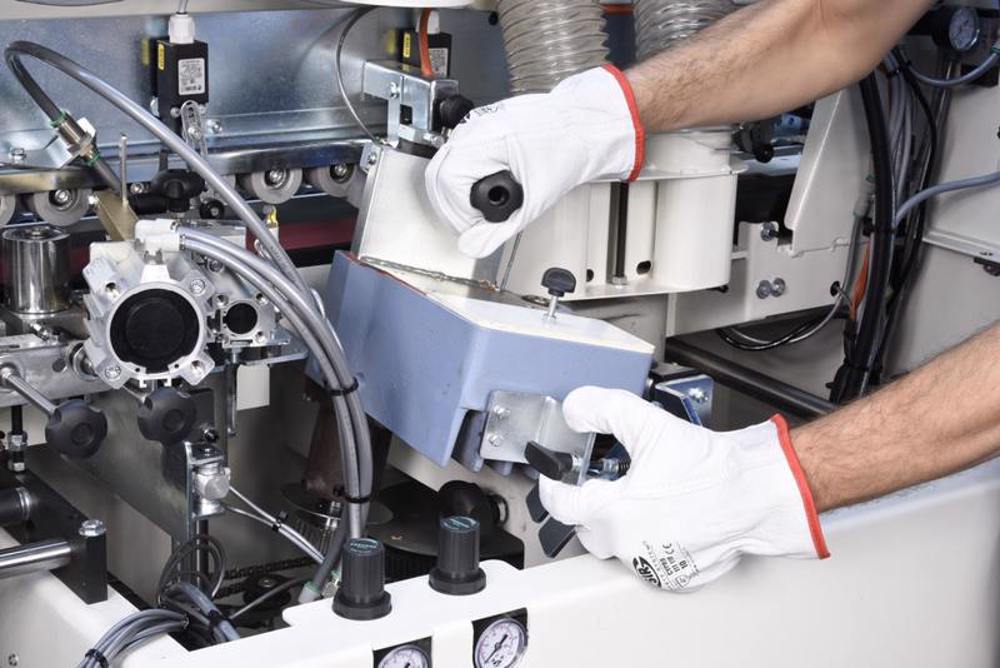

New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market!
New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market!
Technical data
Technical data
| me 40 | ||
| Work table dimensions | mm | 3465 x 710 |
| Min. ÷ max. thickness of rolled edges | mm | 0,4 ÷ 3 |
| Max. thickness of edges in strips | mm | 5 |
| Min. ÷ max. panel height | mm | 8 ÷ 50 |
| Min. panel length/width | mm | 190/110 |
| Feed speed | m/min | 9 |
